Applicable Standards:

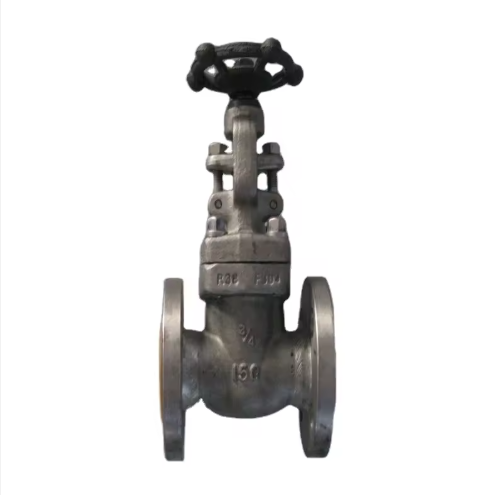

- Forged Gate valve, APl602
- Steel Valves, ASME B16.34
- Face to Face MFG’S Standard
- Socket Welded ASME B16.11
- Screw Threaded AEME B1.20.1/BS21
- Buttwelding ends ASME B36.10M
- Inspection and test API 598
Material:
A105,A350LF2,A82 F5,A182 F11,A182 F22,A182 F304(L),A182 F316(L),A182 F347,A182 F321,A182 F91,Mone|,Alloy20 etc.
Size Range:
1/2″~3
Pressure Rating:
- -ASME CL,150,300,600,900,1500,2500
Temperature Range:
–50C~650C
Bonnet:
- Bolted Bonnet
- Welded Bonnet
- Pressure seal Bonnet
Contruction:
- Full port or conventional port
- Outside screw and yoke(Os&Y)
- Two piece self-aligning packing gland
- Bolted bonnet+sprial wound gasket seal bonnet
- Bolted bonnet with sprial woundgasket threaded and seal welded bonnet or threaded and pressure seal bonnet
- Integral backseat
- Socket weld ends to ASME B16.11
- Screwd ends NPT to ANSI/ASME B1.20.1
Pipe fittings are crucial components in the piping system, used for connection, redirection, diversion, size change, sealing or controlling the flow of fluids. They are widely applied in fields such as construction, industry, energy and municipal services.
Key Functions: It can perform functions such as connecting pipes, changing flow direction, dividing and merging flows, adjusting pipe diameters, sealing pipes, controlling and regulating.
Application Scope:
- Building water supply and drainage: PVC elbows and PPR tris are used for water pipe networks.
- Industrial pipelines: Stainless steel flanges and alloy steel elbows are used to transport chemical media.
- Energy transportation: High-pressure steel pipe fittings are used in oil and gas pipelines.
- HVAC (Heating, Ventilation, and Air Conditioning): Copper pipe fittings are used to connect refrigerant pipelines, and flexible joints are used for vibration reduction.
- Agricultural irrigation: Quick connectors facilitate the assembly and disassembly of sprinkler irrigation systems.
