Applicable standards:
STEEL BALL VALVES, API 608/API 6D
STEEL BALL VALVES, ISO 14313
FIRE STATIC.API6O7ANTI STATIC,API 6O8
STEEL VALVES,ASME B16.34
FACE TO FACE ASME B16.10
END FLANGES.ASME B16.5BURRWELDING ENDS.ASME B16.25INSPECTION AND TEST,API 59B/API6D
Design description
FULLPORT DESIGN
BB,BOLTED BONNET, SPLIT BODY
THREE PIECE BODY FOR 12″ &ABOVE

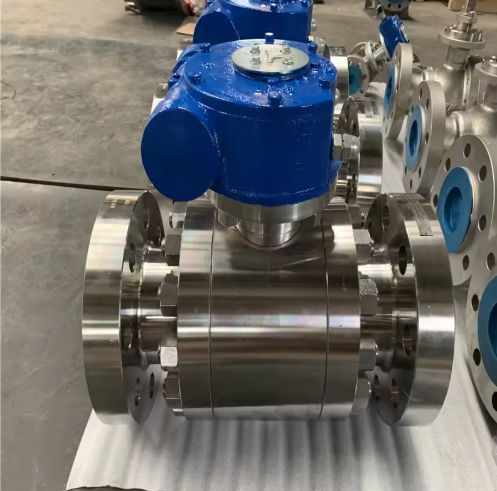

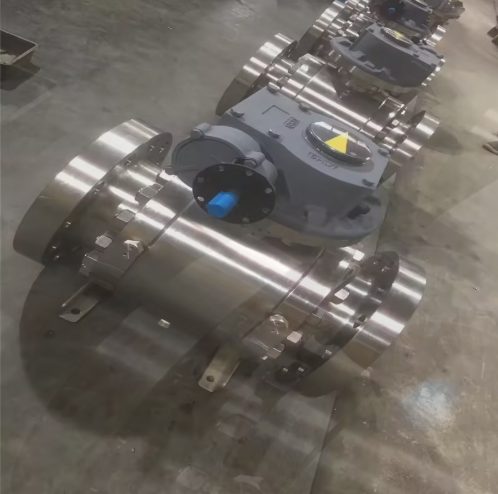

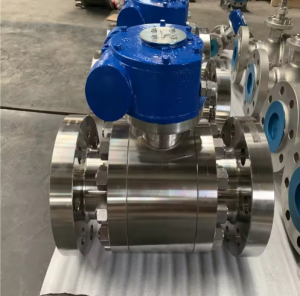

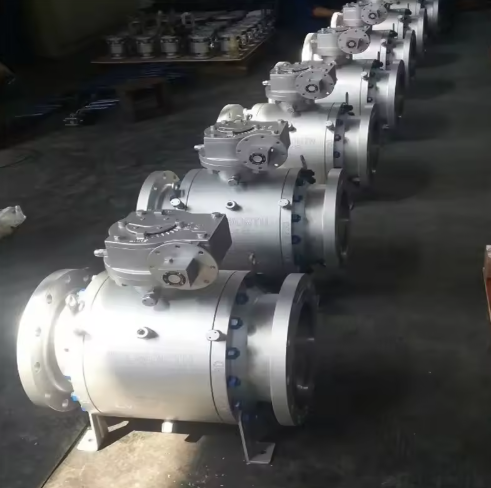

TRUNNION MOUNTED BALL TYPE
BLOW-OUT PROOF STEM
FORE DURABLE CONSTRUCTION
ANTI STATIC DEVICE
STOPPER DEVICE
ISO 5211 MOUNTING PAD
FLANGED OR BUTTWELDING ENDS
AVAILABLE WITH WG OPERATOR
Pipe fittings are crucial components in the piping system, used for connection, redirection, diversion, size change, sealing or controlling the flow of fluids. They are widely applied in fields such as construction, industry, energy and municipal services.
Key Functions: It can perform functions such as connecting pipes, changing flow direction, dividing and merging flows, adjusting pipe diameters, sealing pipes, controlling and regulating.
Application Scope:
- Building water supply and drainage: PVC elbows and PPR tris are used for water pipe networks.
- Industrial pipelines: Stainless steel flanges and alloy steel elbows are used to transport chemical media.
- Energy transportation: High-pressure steel pipe fittings are used in oil and gas pipelines.
- HVAC (Heating, Ventilation, and Air Conditioning): Copper pipe fittings are used to connect refrigerant pipelines, and flexible joints are used for vibration reduction.
- Agricultural irrigation: Quick connectors facilitate the assembly and disassembly of sprinkler irrigation systems.
