China OEM Forged Socket Weld Flange - Forged Lap Joint Loose Flange – C. Z. IT Detail:
Specification
| Product Name | Lap joint/Loose flange |
| Size | 1/2″-24″ |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K |
| Standard | ANSI B16.5,EN1092-1, JIS B2220 etc. |
| Stub end | MSS SP 43, ASME B16.9 |
| Material | Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc. |
| Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc. | |
| Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. | |
| Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc. | |
| Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc. | |
| Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc. | |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship building;water treatment,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |

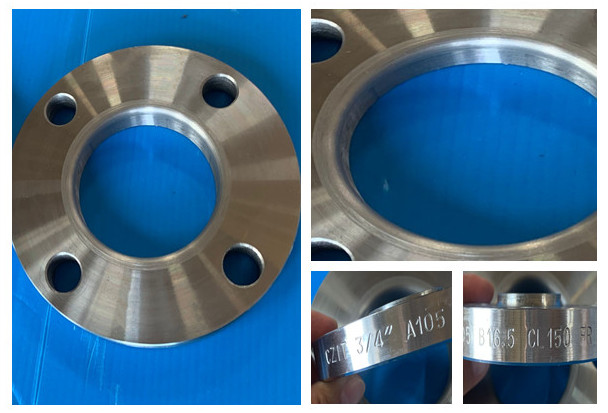

Products detail show
1. Face
flat face, Radius is the most important
2. With hub or without hub
3.Face finish
The finish on the face of flange is measured as an Arithmetical Average Roughness Height(AARH). The finish is determined by the standard used. For example, ANSI B16.5 specifies face finishes within a range 125AARH-500AARH(3.2Ra to 12.5Ra). Other finishes are available on requst, for example 1.6 Ra max,1.6/3.2 Ra, 3.2/6.3Ra or 6.3/12.5Ra. The range 3.2/6.3Ra is most common.
Marking and packing
• Each layer use plastic film to protect the surface
• For all stainless steel are packed by plywood case. For bigger size carbon flange are packed by plywood pallet. Or can be customized packing.
• Shipping mark can make on request
• Markings on products can be carved or printed. OEM is accepted.
Inspection
• UT test
• PT test
• MT test
• Dimension test
Before delivery, our QC team will arrange NDT test and dimension inspection.Also accept TPI(third party inspection).
Production process
| 1. Choose Genuine raw material | 2. Cut raw material | 3. Pre-heating |
| 4. Forging | 5. Heat treatment | 6. Rough Machining |
| 7. Drilling | 8. Fine maching | 9. Marking |
| 10. Inspection | 11. Packing | 12. Delivery |
Product detail pictures:
Related Product Guide:
What are duplex stainless steel applications?
The key to our success is "Good Products Good quality, Reasonable Value and Efficient Service" for China OEM Forged Socket Weld Flange - Forged Lap Joint Loose Flange – C. Z. IT, The product will supply to all over the world, such as: Jamaica, Georgia, Cambodia, We are seeking the chances to meet all the friends from both at home and abroad for the win-win cooperation. We sincerely hope to have long-term cooperation with all of you on the bases of mutual benefit and common development.
Pipe fittings are crucial components in the piping system, used for connection, redirection, diversion, size change, sealing or controlling the flow of fluids. They are widely applied in fields such as construction, industry, energy and municipal services.
Key Functions: It can perform functions such as connecting pipes, changing flow direction, dividing and merging flows, adjusting pipe diameters, sealing pipes, controlling and regulating.
Application Scope:
- Building water supply and drainage: PVC elbows and PPR tris are used for water pipe networks.
- Industrial pipelines: Stainless steel flanges and alloy steel elbows are used to transport chemical media.
- Energy transportation: High-pressure steel pipe fittings are used in oil and gas pipelines.
- HVAC (Heating, Ventilation, and Air Conditioning): Copper pipe fittings are used to connect refrigerant pipelines, and flexible joints are used for vibration reduction.
- Agricultural irrigation: Quick connectors facilitate the assembly and disassembly of sprinkler irrigation systems.
