China Wholesale Ansi Check Valve Factory – Forged steel Gate valve – C. Z. IT Detail:

Gate valves are used to shut off the flow of liquids rather than for flow regulation. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low flow resistance.The size of the open flow path generally varies in a nonlinear manner as the gate is moved. This means that the flow rate does not change evenly with stem travel. Depending on the construction, a partially open gate can vibrate from the fluid flow.

Design Features

Outside Screw and Yoke(OS&Y)
Two Piece self aligning packing gland
Bolted bonnet with spiral-wound gasket
Integral backseat

Specifications

Basic Design: API 602, ANSI B16.34
End to End: DHV Standard
Test & Inspection: API-598
Screwed Ends (NPT) to ANSI/ASME B1.20.1
Socket weld Ends to ASME B16.11
Butt weld Ends to ASME B16.25
End Flange: ANSI B16.5

Optional Features

Cast Steel, Alloy Steel, Stainless Steel
Full Port or Regular Port
Extended Stem or Below Seal
Welded Bonnet or Pressure Seal Bonnet
Locking Device upon request
Manufacturing to NACE MR0175 upon request

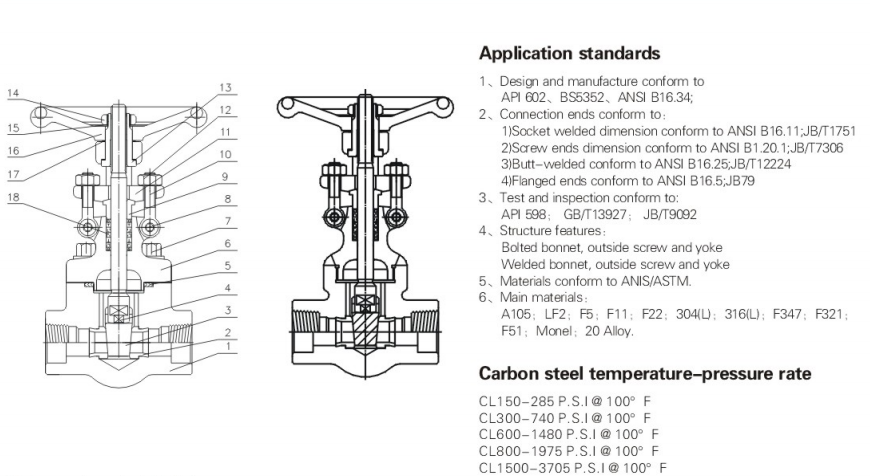

Products Drawing:

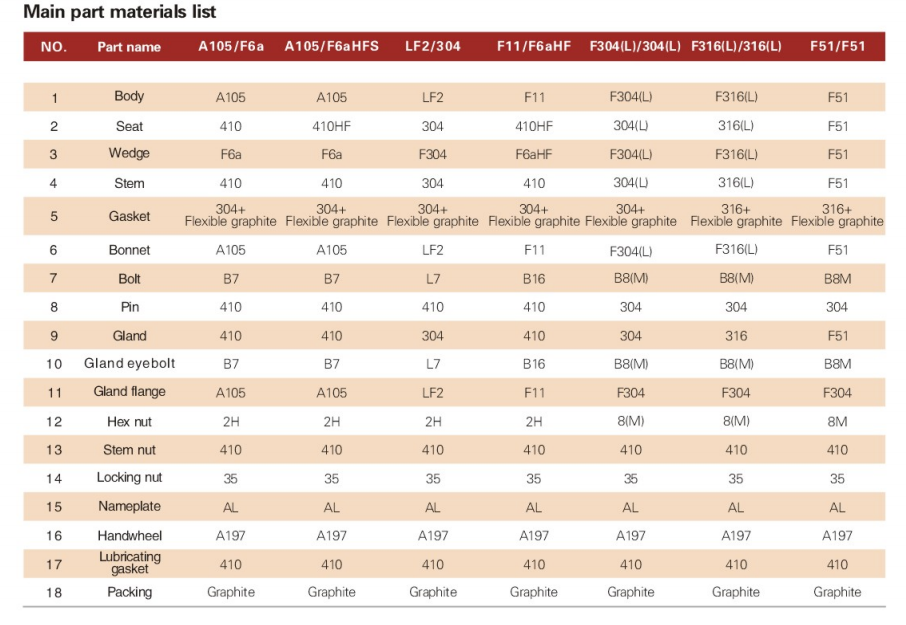

Main Part Materials List:

Product detail pictures:

Related Product Guide:
What are duplex stainless steel applications?

Adhering into the principle of "quality, provider, performance and growth", we now have gained trusts and praises from domestic and intercontinental consumer for China Wholesale Ansi Check Valve Factory – Forged steel Gate valve – C. Z. IT, The product will supply to all over the world, such as: Zurich, Belarus, Sierra Leone, If you need any of our products, or have other items to be produced, please send us your inquiries, samples or detailed drawings. Meanwhile, aiming to develop into an international enterprise group, we look forward to receiving offers for joint ventures and other cooperative projects.

Pipe fittings are crucial components in the piping system, used for connection, redirection, diversion, size change, sealing or controlling the flow of fluids. They are widely applied in fields such as construction, industry, energy and municipal services.

Key Functions: It can perform functions such as connecting pipes, changing flow direction, dividing and merging flows, adjusting pipe diameters, sealing pipes, controlling and regulating.

Application Scope:

Building water supply and drainage: PVC elbows and PPR tris are used for water pipe networks.
Industrial pipelines: Stainless steel flanges and alloy steel elbows are used to transport chemical media.
Energy transportation: High-pressure steel pipe fittings are used in oil and gas pipelines.
HVAC (Heating, Ventilation, and Air Conditioning): Copper pipe fittings are used to connect refrigerant pipelines, and flexible joints are used for vibration reduction.
Agricultural irrigation: Quick connectors facilitate the assembly and disassembly of sprinkler irrigation systems.
