OEM Cast Steel Globe Valve Quotes – Cast Stainless Steel Flanged 2-Piece Ball Valve – C. Z. IT Detail:

Product name	Cast Flanged 2-Piece ball valve( 2pc ball valve)
Design Standard	ASME B16.34,BS 5351,DIN3337
Material	Body: A216 WCB,A351 CF8M, CF8, DIN 1.4408, 1.4308, 1.0619
	Ball: A182F304,A182 F316,etc
	Stem: A276-304, A276 316,etc
Size:	1/2″, 3/4″,1″ , 1 1/4″, 1 1/2″, 2″ , 2 1/2″, 3″ , 4″ (DN15-DN100)
Pressure	150#, PN16-PN40
Medium	Water/oil/gas/air/steam/weak acid alkali/acid alkaline substances
Face to face	ASME B16.10, DIN3202-F4
Mounting pad	ISO5211
Test standard	API 607, ISO10497,API 598,ISO5209
Flange Dimension	ASME B16.5, DIN2632, DIN2633,DIN2634, DIN2635
Operation	Manual/Motor/Pneumatic

ISO5211 Actuator Direct-Mount

ISO 5211 pattern mounting pad allow easy valve automation product installation.

The dual ISO direct mounting pad allows precise and flexible mounting of actuator. Usually two sets of mounting holes are drilled
for different actuator sizes. With the integrally cast top mounting platform, machined flat surface and square stem, the design
ensures correct alignment of the actuator to effectively minimize the side-loading during high cycle or continuous duty applications. The
well-supplied (air or electric power) actuation equipments can be removed safely and easily while the valve is under the line pressure

Floating Ball Design

The floating ball design, combined with soft seat, offers bubble-tight shutoff, low operation torque and prolonged life cycle.(Floating ball valve)

Optional Material

Stainless steel: ASTM A351 Gr CF3M, CF3

Monel 400

Low temperature Carbon steel ASTM A352 Gr LCB

Alloy 20 ASTM A351 CN7M

Hastelloy C276, Alloy 20

Optional Material of O-ring

RPTFE or Viton

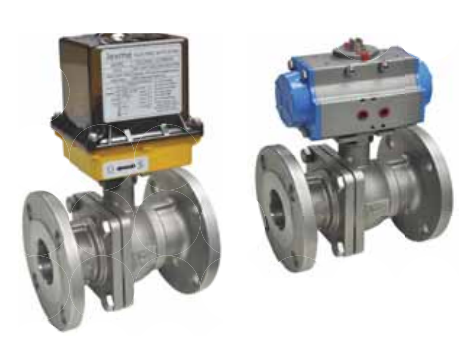

Pneumatic Actuated Ball Valve

ball valve

304 Flange Ball Valve means the steel grade is CF8

316 Flange Ball Valve means the steel grade is CF8M

Besides 2-pc ball valve, we also can offer 1-pc ball valve, 3 Way Ball Valve, 3pc Ball Valve

If you are interested in more other High Quality Flange Ball Valve, please visit here: China Ball Valve

Product detail pictures:

Related Product Guide:
What are duplex stainless steel applications?

"Based on domestic market and expand overseas business" is our development strategy for OEM Cast Steel Globe Valve Quotes – Cast Stainless Steel Flanged 2-Piece Ball Valve – C. Z. IT, The product will supply to all over the world, such as: Canberra, Ecuador, Finland, With strong technical strength and advanced production equipment, and SMS people purposefully , qualified, dedicated spirit of enterprise. Enterprises took the lead through the ISO 9001:2008 international quality management system certification, CE certification EU ; CCC.SGS.CQC other related product certification. We look forward to reactivating our company connection.

Pipe fittings are crucial components in the piping system, used for connection, redirection, diversion, size change, sealing or controlling the flow of fluids. They are widely applied in fields such as construction, industry, energy and municipal services.

Key Functions: It can perform functions such as connecting pipes, changing flow direction, dividing and merging flows, adjusting pipe diameters, sealing pipes, controlling and regulating.

Application Scope:

Building water supply and drainage: PVC elbows and PPR tris are used for water pipe networks.
Industrial pipelines: Stainless steel flanges and alloy steel elbows are used to transport chemical media.
Energy transportation: High-pressure steel pipe fittings are used in oil and gas pipelines.
HVAC (Heating, Ventilation, and Air Conditioning): Copper pipe fittings are used to connect refrigerant pipelines, and flexible joints are used for vibration reduction.
Agricultural irrigation: Quick connectors facilitate the assembly and disassembly of sprinkler irrigation systems.
