CZIT offers sanitary stainless steel elbow, especially 19.1mm,25.4mm bend, 38.1mm bend, 50.8mm bend elbow. Surface option can be mirror polished elbow, sanitary polish elbow, or without polishing
Data sheet

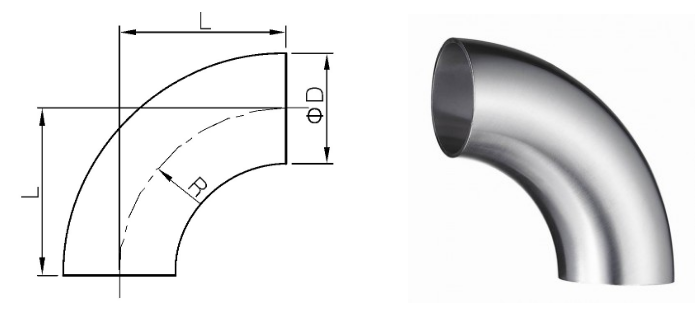

Dimension of Sanitary Weld Elbow 90 degree -3A (unit:mm)
| SIZE | D | L | R |
| 1/2" | 12.7 | 19.1 | 19.1 |
| 3/4" | 19.1 | 28.5 | 28.5 |
| 1" | 25.4 | 38.1 | 38.1 |
| 1/1/4" | 31.8 | 47.7 | 47.7 |
| 1 1/2" | 38.1 | 57.2 | 57.2 |
| 2" | 50.8 | 76.2 | 76.2 |
| 2 1/2" | 63.5 | 95.3 | 95.3 |
| 3" | 76.2 | 114.3 | 114.3 |
| 4" | 101.6 | 152.4 | 152.4 |
| 6" | 152.4 | 228.6 | 228.6 |
Dimension of Sanitary Weld elbow 90 degree -DIN (Unit:mm)
| SIZE | D | L | R |
| DN10 | 12 | 26 | 26 |
| DN15 | 18 | 35 | 35 |
| DN20 | 22 | 40 | 40 |
| DN25 | 28 | 50 | 50 |
| DN32 | 34 | 55 | 55 |
| DN40 | 40 | 60 | 60 |
| DN50 | 52 | 70 | 70 |
| DN65 | 70 | 80 | 80 |
| DN80 | 85 | 90 | 90 |
| DN100 | 104 | 100 | 100 |
| DN125 | 129 | 187 | 187 |
| DN150 | 154 | 225 | 225 |
| DN200 | 204 | 300 | 300 |
Dimension of Sanitary Weld elbow 90 degree -ISO/IDF (Unit:mm)
| SIZE | D | L | R |
| 12.7 | 12.7 | 19.1 | 19.1 |
| 19 | 19.1 | 28.5 | 28.5 |
| 25 | 25.4 | 33.5 | 33.5 |
| 32 | 31.8 | 38 | 38 |
| 38 | 38.1 | 48.5 | 48.5 |
| 45 | 45 | 57.5 | 57.5 |
| 51 | 50.8 | 60.5 | 60.5 |
| 57 | 57 | 68 | 68 |
| 63 | 63.5 | 83.5 | 83.5 |
| 76 | 76.2 | 88.5 | 88.5 |
| 89 | 89 | 103.5 | 103.5 |
| 102 | 101.6 | 127 | 127 |
| 108 | 108 | 152 | 152 |
| 114.3 | 114.3 | 152 | 152 |
| 133 | 133 | 190 | 190 |
| 159 | 159 | 228.5 | 228.6 |
| 204 | 204 | 300 | 300 |
| 219 | 219 | 305 | 302 |
| 254 | 254 | 372 | 375 |
| 304 | 304 | 450 | 450 |

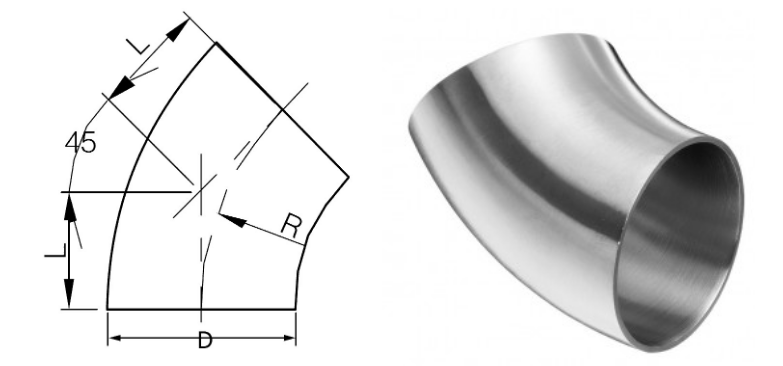

Dimension of Santitary Weld Elbow-45 degree -3A (unit:mm)
| SIZE | D | L | R |
| 1/2" | 12.7 | 7.9 | 19.1 |
| 3/4" | 19.1 | 11.8 | 28.5 |
| 1" | 25.4 | 15.8 | 38.1 |
| 1 1/4" | 31.8 | 69.7 | 47.7 |
| 1 1/2" | 38.1 | 74.1 | 57.2 |
| 2" | 50.8 | 103.2 | 76.2 |
| 2 1/2" | 63.5 | 131.8 | 95.3 |
| 3" | 76.2 | 160.3 | 114.3 |
| 4" | 101.6 | 211.1 | 152.4 |

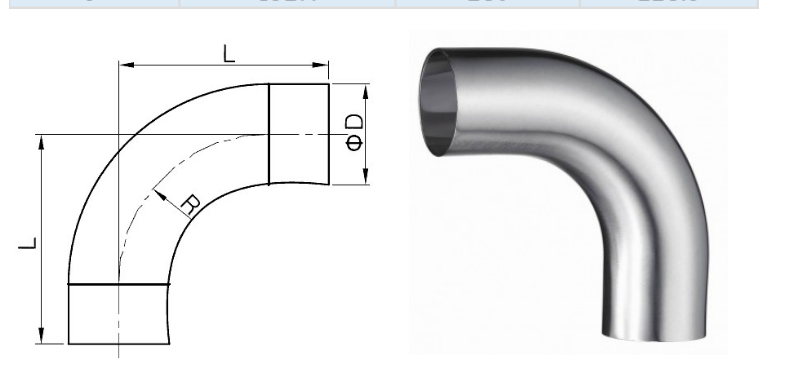

Dimension of Santitary Weld Elbow-90 degree -3A (unit:mm)
| SIZE | D | L | R |
| 1/2" | 12.7 | 19.1 | 19.1 |
| 3/4" | 19.1 | 28.5 | 28.5 |
| 1" | 25.4 | 38.1 | 38.1 |
| 1 1/4" | 31.8 | 47.7 | 47.7 |
| 1 1/2" | 38.1 | 57.2 | 57.2 |
| 2" | 50.8 | 76.2 | 76.2 |
| 2 1/2" | 63.5 | 95.3 | 95.3 |
| 3" | 76.2 | 114.3 | 114.3 |
| 4" | 101.6 | 152.4 | 152.4 |
| 6" | 152.4 | 228.6 | 228.6 |

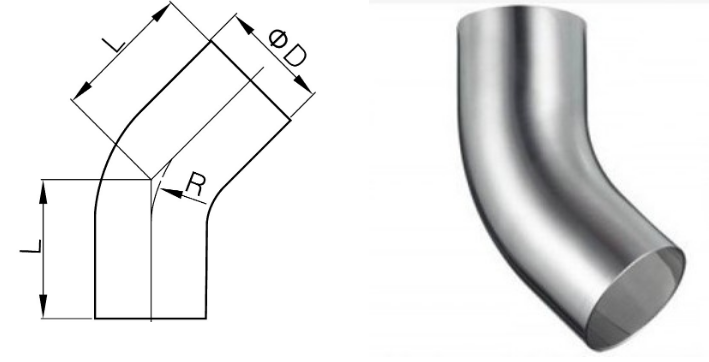

Dimension of Santitary Weld Elbow-45 degree With Straight Ends -SMS(Unit:mm)
| SIZE | D | L | R |
| 25 | 25.4 | 45 | 25 |
| 32 | 31.8 | 53.3 | 32 |
| 38 | 38.1 | 56.7 | 38 |
| 51 | 50.8 | 63.6 | 51 |
| 63 | 63.5 | 80.8 | 63.5 |
| 76 | 76.2 | 82 | 76 |
| 102 | 101.6 | 108.9 | 150 |

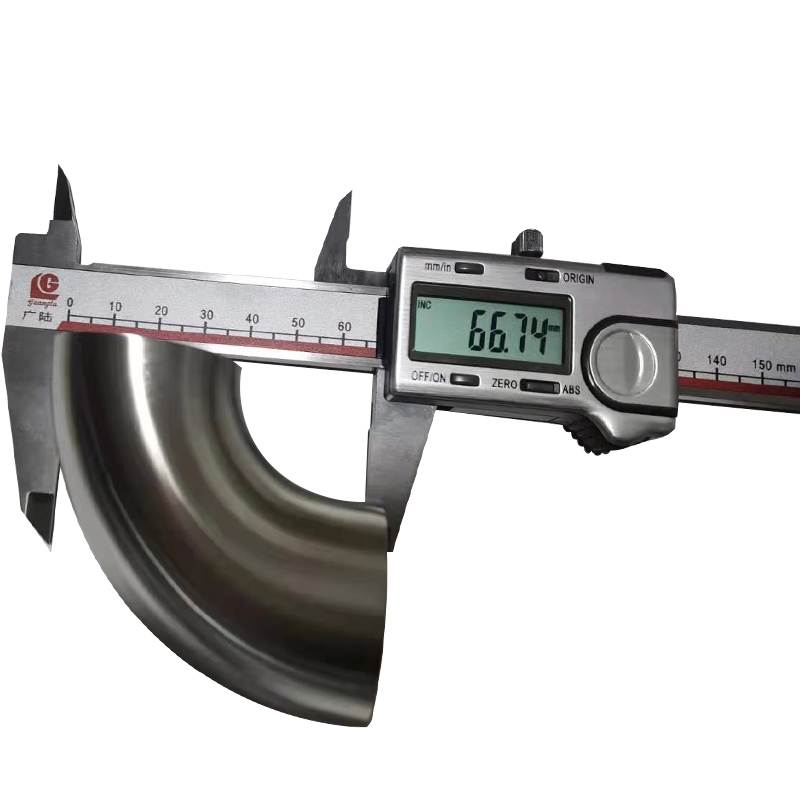

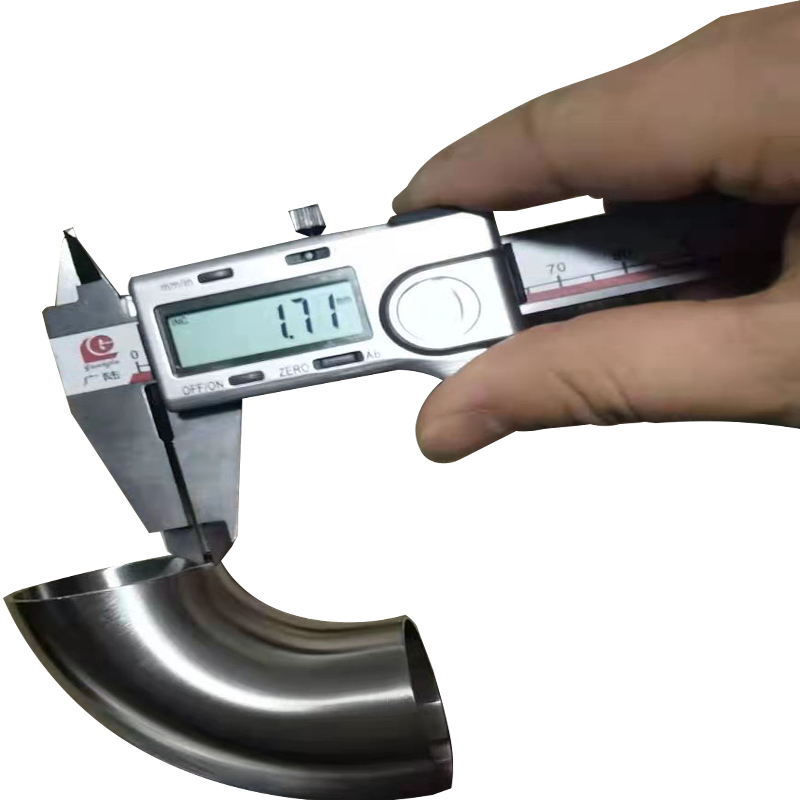

CHECKING
Packaging & Shipping
1. Packed by plywood case or plywood pallet
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
