ANSI B16.9 Carbon Steel 45 Degree Welding Bend

Short Description:

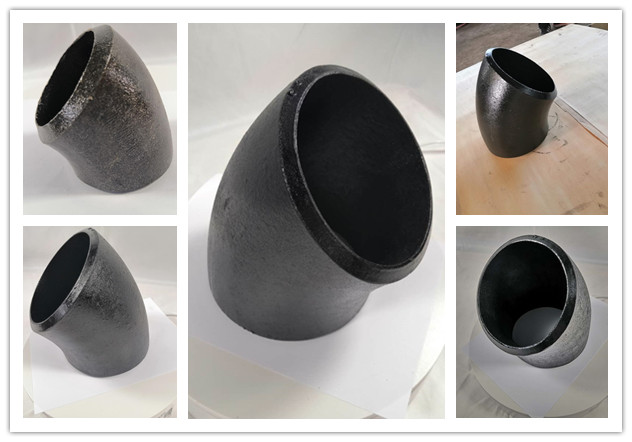

Name:45 Degree Welding Bend
Standard: ANSI B16.9
Degree: 45 degree, 45d, 45 deg
Material: ASTM A234WPB
Wall thickness :STD


  • Radius: LR(1.5D)
  • Color: black or varnished
  • End: bevel end
  • Product Detail

    Heat Treatment

    Marking

    Detailed Photos

    Inspection

    Packaging & Shipping

    PRODUCT PARAMETERS

    Product Name Pipe elbow
    Size 1/2"-36" seamless elbow(SMLS elbow), 26"-110" welded with seam. Biggest outside diameter can be 4000mm
    Standard ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc.
    Wall thickness STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
    Degree 30° 45° 60° 90° 180°,etc
    Radius LR/long radius/R=1.5D,SR/Short radius/R=1D
    End Bevel end/BE/buttweld
    Surface nature color, varnished, black painting, anti-rust oil etc.
    Material Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.
      Pipeline steel: ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
      Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 , 12crmov, etc.
    Application Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc.
    Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

    PIPE FITTINGS

    Butt welded pipe fittings includes steel pipe elbow, steel pipe tee, steel pipe reduer, steel pipe cap. All those butt welding pipe fittings, we can supply together, we have more 20 years production experiences.

    If you are also interested other fittings, please click followed LINK to check details.

     PIPE TEE                                PIPE REDUCER                             PIPE CAP                                         PIPE BEND                                     FORGED FITTINGS

    BUTT WELDED PIPE ELBOW

    Steel pipe elbow is a key parts in a piping system for to change the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe turn to a certain direction of 45 degree or 90 degree.

    For industrial pipe elbow, the connectin end type is butt weld, according to ANSI B16.25. Butt welded can described butt welding, buttweld, bevel end. BW

    ELBOW TYPE

    Elbow could be ranged from direction angle, connection types, length and radius, material types.

    Classified by Direction Angle

    As we know, according to fluid direction of the pipelines, elbow can be divided into different degrees, such as 45 degree elbow, 90 degree elbow,180 degree elbow, which are most common degrees. Also there has 60 degree and 120 degree, for some special pipelines.

    For 45 degree welding bend, also described 45 degree elbow.

    What is Elbow Radius

    The elbow radius mean curvature radius. If the radius is the same as pipe diameter, it called short radius elbow, also called SR elbow, normally for low pressure and low speed pipelines.

    If the radius is larger than pipe diameter, R ≥ 1.5 Diameter, then we call it a long radius elbow (LR Elbow), applied for high pressure and high flow rate pipelines.

    If radius more than 1.5D, always named bend.  elbow bend pipe fittings. Such as 2d elbow, 2d bend, 3d elbow, 3d bend, etc.

    Classification by Material

    Carbon steel, also called mild steel or black steel. Such as ASTM  A234 WPB

    Looking for stainless steel elbows, please click this link to find more details: STAINLESS STEEL ELBOWS

    Shape Type

    Can be equal elbow or  Reducing elbow

    ELBOW SURFACE

    Sand Blast

    After hot forming, we arrange sand blast to make the surface to be clean and smooth.

    After Sand blast, to avoid get rust, should do black painting or anti-rust oil, Hot dip galvanized (HDG) , epoxy, 3PE,  vanished surface, etc. That is depend on customer's request.

    HEAT TREATMENT

    1. Keep sample raw material to trace.
    2. Arrange heat treatment as per standard strictly.

    MARKING

    Various marking work, can be curved, painting, lable. Or on your request. We accept to mark your LOGO.

    5

    5

    DETAILED PHOTOS

    1. Bevel end as per ANSI B16.25.

    2. Sand blast first, then Perfect painting work. Also can be varnished.

    3. Without lamination and cracks.

    4. Without any weld repairs.

    45 Degree Welding Bend

    INSPECTION

    1. Dimension measurements, all within standard tolerance.

    2. Thickness tolerance:+/-12.5% , or on your request

    3. PMI

    4. MT, UT,X-ray test

    5. Accept Third party inspection

    6. Supply MTC, EN10204 3.1/3.2 certificate

    5

    5

    PACKAGING& SHIPPING

    1. Packed by plywood case or plywood pallet as per ISPM15

    2. we will put packing list on each package

    3. we will put shipping markings on each package. Markings words are on your request.

    4. All  wood package materials are fumigation free

    FAQ

    1. What is ANSI B16.9 carbon steel 45 degree welding elbow?
    - ANSI B16.9 Carbon Steel 45 Degree Weld Elbow is a pipe fitting that allows for a 45 degree change of direction in a pipe. It is designed to provide smooth fluid flow and reduce turbulence.

    2. What materials are used to manufacture ANSI B16.9 carbon steel 45 degree elbow pipe?
    - ANSI B16.9 Carbon Steel 45 Degree Elbow is made of high quality carbon steel material to ensure durability and corrosion resistance.

    3. What are the advantages of using ANSI B16.9 carbon steel 45-degree elbow pipe?
    - These welding elbows have excellent strength and can withstand high pressure environments.
    - They provide a smooth transition and reduce stress on the pipe, preventing leaks or damage.
    - They are easy to install and allow for efficient and hassle-free plumbing modifications.

    4. How are ANSI B16.9 carbon steel 45-degree welding elbows made?
    - ANSI B16.9 Carbon Steel 45 Degree Welded Bends are manufactured using a process called hot bending, where special equipment is used to heat and bend the carbon steel pipe to the desired angle.

    5. What are the common sizes of ANSI B16.9 carbon steel 45-degree welded elbows?
    - ANSI B16.9 Carbon Steel 45 Degree Weld Elbows are available in various sizes from 1/2" to 48" to accommodate different piping requirements.

    6. Can ANSI B16.9 carbon steel 45-degree elbow be used for both liquid and gas pipelines?
    - Yes, these welding elbows are suitable for liquid and gas pipes as they provide reliable and efficient flow direction changes.

    7. Is ANSI B16.9 Carbon Steel 45 Degree Bend Pipe compatible with other pipe fittings?
    - Yes, these weld elbows are designed to be compatible with other ANSI B16.9 standard pipe fittings for seamless integration into existing piping systems.

    8. Which industry standards does ANSI B16.9 carbon steel 45-degree welded elbow comply with?
    - ANSI B16.9 carbon steel 45 degree welding elbow meets the standards set by the American National Standards Institute (ANSI) to ensure its quality and reliability.

    9. Can the ANSI B16.9 carbon steel 45 degree welding elbow be customized according to specific requirements?
    - Yes, these welding elbows can be customized to suit specific project requirements, including different angles, sizes and material options, ensuring a tailor-made solution for a variety of applications.

    10. Where can I buy ANSI B16.9 carbon steel 45 degree elbow pipe?
    - ANSI B16.9 Carbon Steel 45 Degree Welded Elbows are available from a variety of suppliers and manufacturers, online and through local dealers. It is recommended to research and choose a reputable supplier to ensure a high quality product.
