PRODUCT PARAMETERS
This is a classic type ball valve,the structure is very simple,the cost is competitive and the perfotmance is reliable,it is
widely used in many kinds of fieldsAvailable ends:Threaded(NPT) socket welded(SW) butt welded（BW)

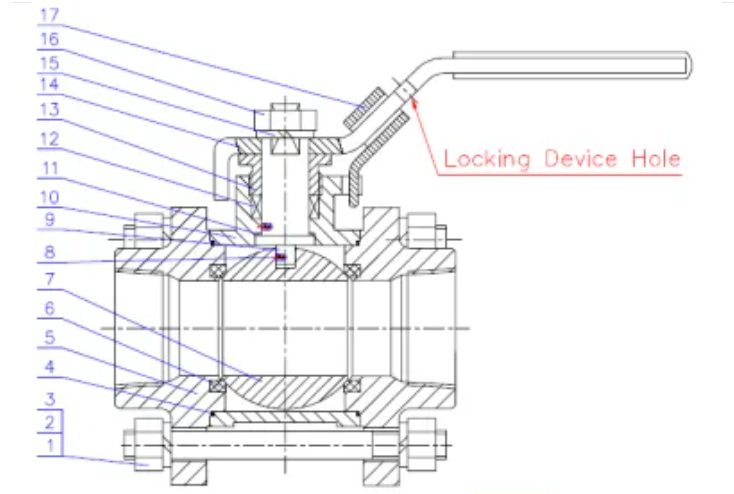

Part List of 3PC ball Valve 1000WOG SS316
|
No.
|
Name
|
Material
|
Standard
|
|
1.
|
Bolt
|
SS304
|
A193 B8
|
|
2.
|
Gasket
|
SS304
|
A276 SS304
|
|
3.
|
Nut
|
SS304
|
A194 8
|
|
4.
|
Gasket
|
RPTFE
|
25% Carbon filled PTFE
|
|
5.
|
Left(Right) Body
|
CF8M
|
ASTM A351
|
|
6.
|
Seat
|
RPTFE
|
25% Carbon filled PTFE
|
|
7.
|
Ball
|
F316
|
ASTM A182
|
|
8.
|
Anti-static device
|
SS316
|
ASTM A276
|
|
9.
|
Stem
|
F316
|
ASTM A182
|
|
10.
|
Middle Body
|
CF8M
|
ASTM A351
|
|
11.
|
Backstop piece
|
RPTFE
|
25% Carbon filled PTFE
|
|
12.
|
Packing
|
RPTFE
|
25% Carbon filled PTFE
|
|
13.
|
Packing Gland
|
CF8M
|
ASTM A351
|
|
14.
|
Hand Lever
|
SS201+PVC
|
ASTM A276
|
|
15.
|
Gasket
|
SS304
|
A276 SS304
|
|
16.
|
Nut
|
SS304
|
A194 8
|
|
17.
|
Locking Device
|
SS201
|
ASTM A276
|

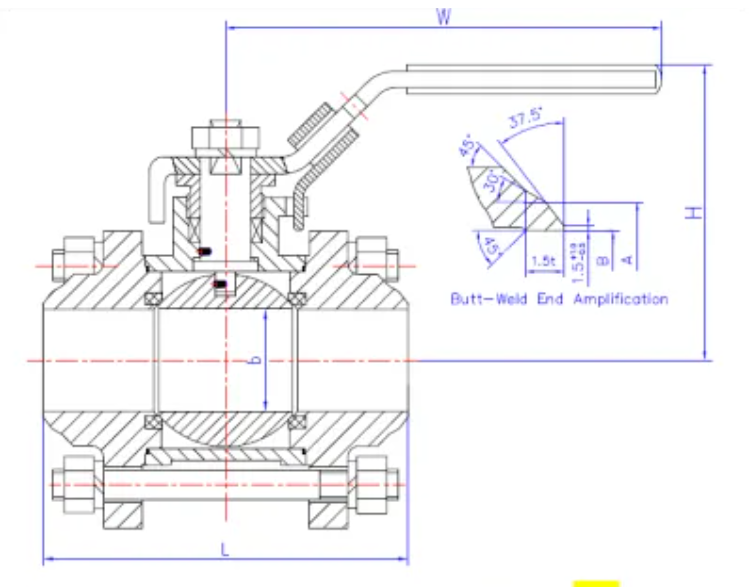

Part List of 3PC ball Valve 1000WOG BW
|
NPS
|
SCH No.
|
d
|
L
|
H
|
W
|
Weight (Kg)
|
Torque(N*M)
|
|
1/4"
|
As per purchaser
|
8
|
68
|
50
|
85
|
0.35
|
4
|
|
3/8"
|
10
|
68
|
50
|
85
|
0.34
|
4
|
|
|
1/2"
|
15
|
63
|
60
|
100
|
0.42
|
5
|
|
|
3/4"
|
20
|
70
|
65
|
115
|
0.52
|
8
|
|
|
1"
|
25
|
81
|
68
|
125
|
0.72
|
12
|
|
|
1 1/4"
|
32
|
95
|
85
|
140
|
1.27
|
16
|
|
|
1 1/2"
|
39
|
101
|
90
|
162
|
1.49
|
39
|
|
|
2"
|
48
|
125
|
95
|
165
|
2.2
|
42
|
|
|
2 1/2"
|
65
|
168
|
135
|
210
|
4.86
|
59
|
|
|
3"
|
79
|
187
|
140
|
230
|
6.76
|
85
|
|
|
4"
|
100
|
252
|
185
|
315
|
13.76
|
130
|

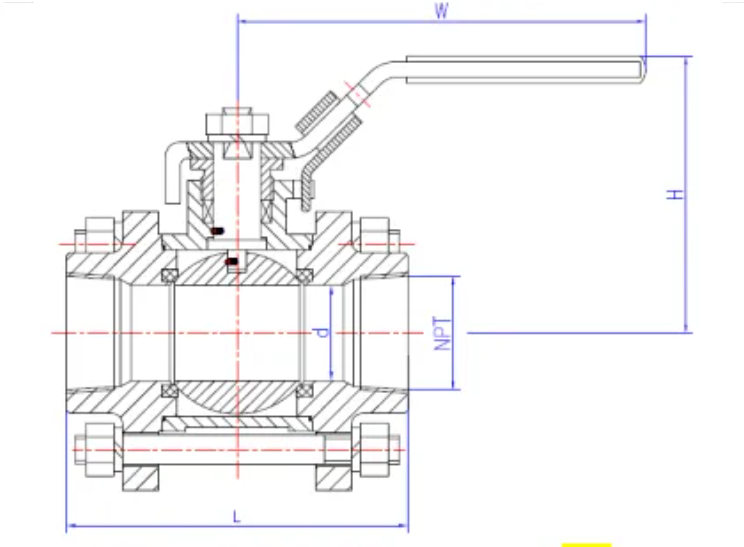

Part List of 3PC ball Valve 1000WOG NPT
|
NPS
|
NPT
|
d
|
L
|
H
|
W
|
Weight (Kg)
|
Torque(N*M)
|
|
1/4"
|
1/4"
|
8
|
68
|
50
|
85
|
0.35
|
4
|
|
3/8"
|
3/8"
|
10
|
68
|
50
|
85
|
0.34
|
4
|
|
1/2"
|
1/2"
|
15
|
63
|
60
|
100
|
0.42
|
5
|
|
3/4"
|
3/4"
|
20
|
70
|
65
|
115
|
0.52
|
8
|
|
1"
|
1"
|
25
|
81
|
68
|
125
|
0.72
|
12
|
|
1 1/4"
|
1 1/4"
|
32
|
95
|
85
|
140
|
1.27
|
16
|
|
1 1/2"
|
1 1/2"
|
39
|
101
|
90
|
162
|
1.49
|
39
|
|
2"
|
2"
|
48
|
125
|
95
|
165
|
2.2
|
42
|
|
2 1/2"
|
2 1/2"
|
65
|
168
|
135
|
210
|
4.86
|
59
|
|
3"
|
3"
|
79
|
187
|
140
|
230
|
6.76
|
85
|
|
4"
|
4"
|
100
|
252
|
185
|
315
|
13.76
|
130
|

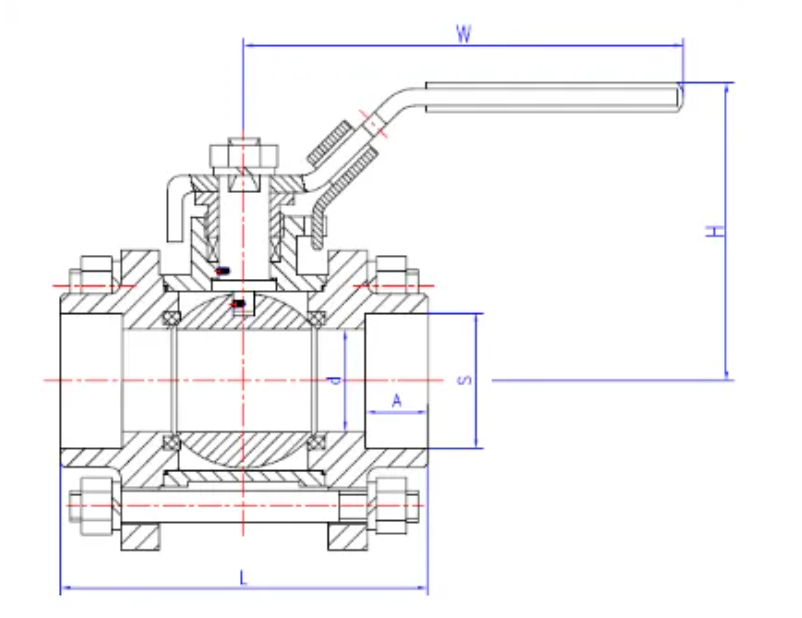

Part List of 3PC ball Valve 1000WOG SW
|
NPS
|
d
|
L
|
H
|
W
|
S
|
A
|
Weight (Kg)
|
Torque
(N*M) |
|
1/4"
|
8
|
68
|
50
|
85
|
14.1
|
9.6
|
0.35
|
4
|
|
3/8"
|
10
|
68
|
50
|
85
|
17.6
|
9.6
|
0.34
|
4
|
|
1/2"
|
15
|
63
|
60
|
100
|
21.8
|
9.6
|
0.42
|
5
|
|
3/4"
|
20
|
70
|
65
|
115
|
27.1
|
12.7
|
0.52
|
8
|
|
1"
|
25
|
81
|
68
|
125
|
33.8
|
12.7
|
0.72
|
12
|
|
1 1/4"
|
32
|
95
|
85
|
140
|
42.6
|
12.7
|
1.27
|
16
|
|
1 1/2"
|
39
|
101
|
90
|
162
|
48.7
|
12.7
|
1.49
|
39
|
|
2"
|
48
|
125
|
95
|
165
|
61.1
|
15.9
|
2.2
|
42
|
