Sanitary stainless steel tees are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. We offers weld fittings in 304 and 316L stainless in a variety of sizes.

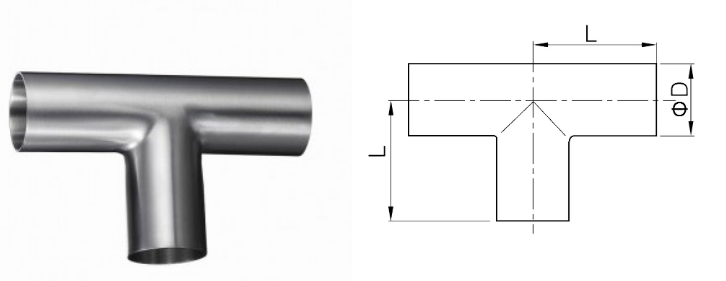

WELD TEE DATA SHEET

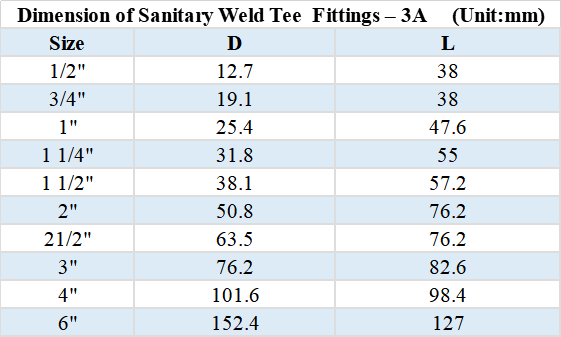

Dimension of Sanitary Weld Tee fittings-3A(Unit:mm)
| SIZE | D | L |
| 1/2" | 12.7 | 38 |
| 3/4" | 19.1 | 38 |
| 1" | 25.4 | 47.6 |
| 1 1/4" | 31.8 | 55 |
| 1 1/2" | 38.1 | 57.2 |
| 2" | 50.8 | 76.2 |
| 2 1/2" | 63.5 | 76.2 |
| 3" | 76.2 | 82.6 |
| 4" | 101.6 | 98.4 |
| 6" | 152.4 | 127 |

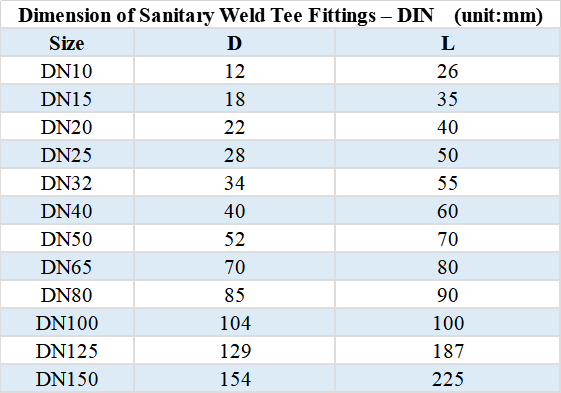

Dimension of Sanitary Weld Tee fittings-DIN(Unit:mm)
| SIZE | D | L |
| DN10 | 12 | 26 |
| DN15 | 18 | 35 |
| DN20 | 22 | 40 |
| DN25 | 28 | 50 |
| DN32 | 34 | 55 |
| DN40 | 40 | 60 |
| DN50 | 52 | 70 |
| DN65 | 70 | 80 |
| DN80 | 85 | 90 |
| DN100 | 104 | 100 |
| DN125 | 129 | 187 |
| DN150 | 154 | 225 |

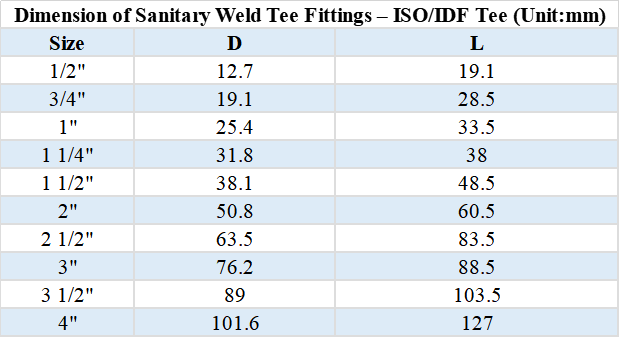

Dimension of Sanitary Weld Tee fittings-ISO/IDF TEE(Unit:mm)
| SIZE | D | L |
| 1/2" | 12.7 | 19.1 |
| 3/4: | 19.1 | 28.5 |
| 1" | 25.4 | 33.5 |
| 1 1/4" | 31.8 | 38 |
| 1 1/2" | 38.1 | 48.5 |
| 2" | 50.8 | 60.5 |
| 2 1/2" | 63.5 | 83.5 |
| 3" | 76.2 | 88.5 |
| 3 1/2" | 89 | 103.5 |
| 4" | 101.6 | 127 |
Dimension of Sanitary Weld Tee fittings-SMS/DS TEE(Unit:mm)
| SIZE | D | L |
| 25 | 25.4 | 55 |
| 32 | 31.8 | 64 |
| 38 | 38.1 | 70 |
| 51 | 50.8 | 82 |
| 63 | 63.5 | 105 |
| 76 | 76.2 | 110 |
| 102 | 101.6 | 150 |
PULLED TEE DATA SHEET

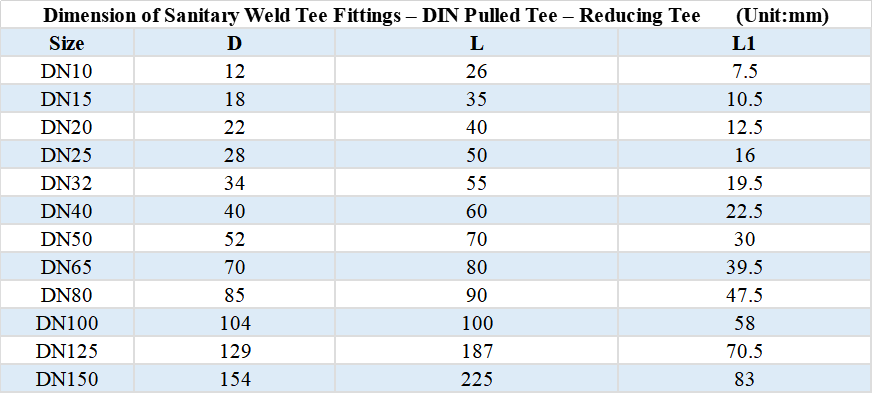

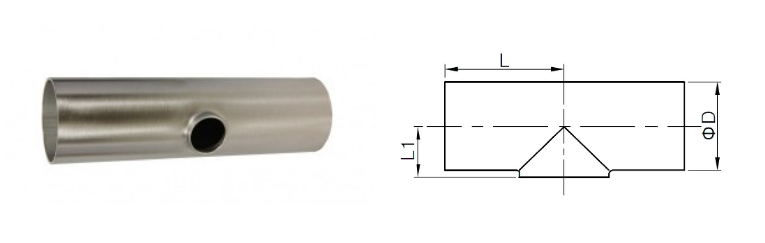

Dimension of Sanitary Weld Tee fittings-DIN PULLED TEE-REDUCING TEE
| SIZE | D | L | L1 |
| DN10 | 12 | 26 | 7.5 |
| DN15 | 18 | 35 | 10.5 |
| DN20 | 22 | 40 | 12.5 |
| DN25 | 28 | 50 | 16 |
| DN32 | 34 | 55 | 19.5 |
| DN40 | 40 | 60 | 22.5 |
| DN50 | 52 | 70 | 30 |
| DN65 | 70 | 80 | 39.5 |
| DN80 | 85 | 90 | 47.5 |
| DN100 | 104 | 100 | 58 |
| DN125 | 129 | 187 | 70.5 |
| DN150 | 154 | 225 | 83 |

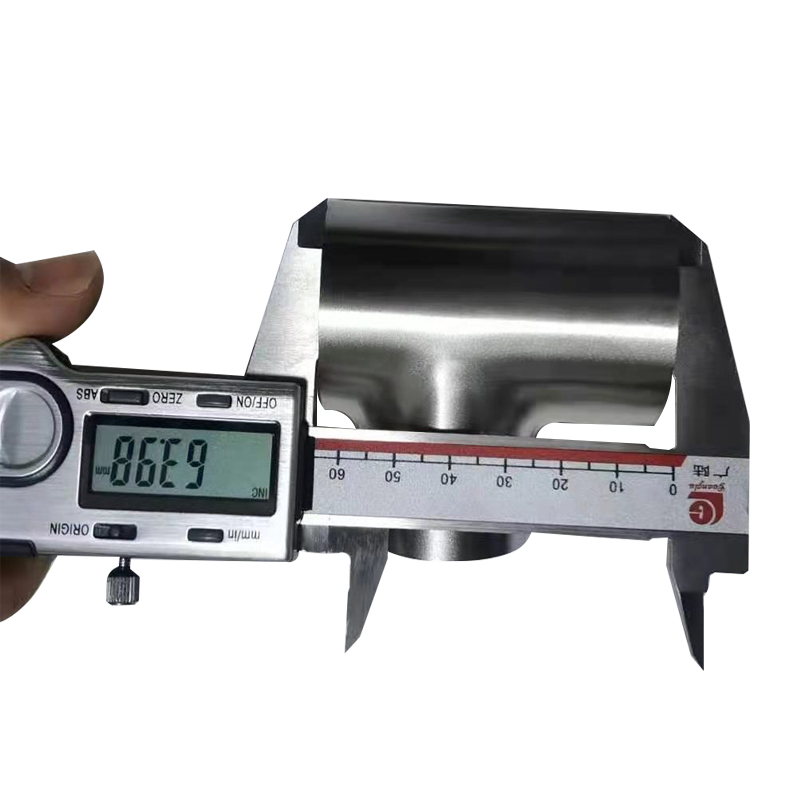

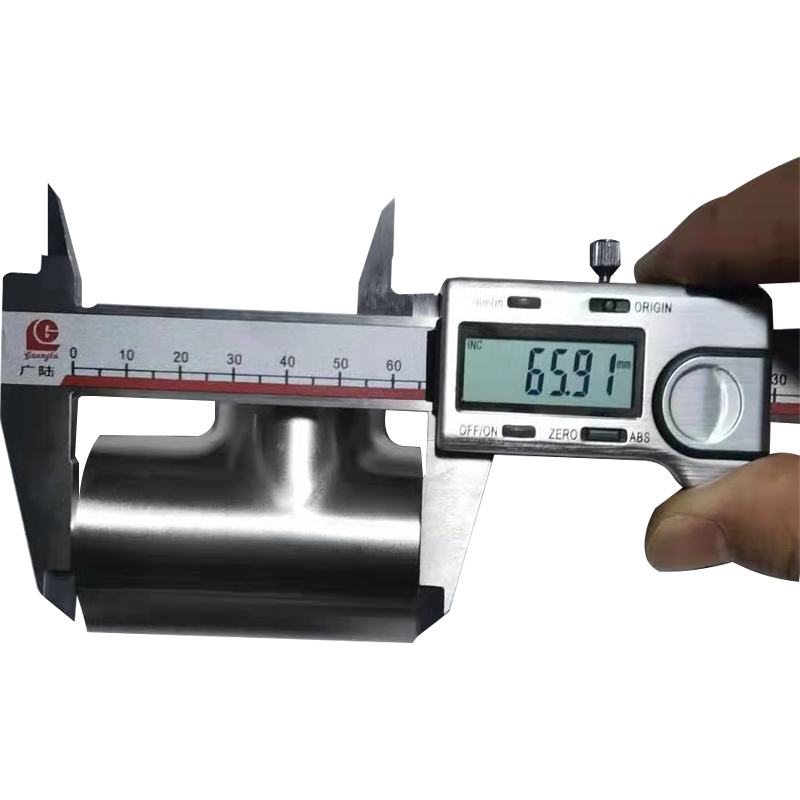

CHECKING
Packaging & Shipping
1. Packed by plywood case or plywood pallet
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
Stainless steel sanitary weld tees are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. We offers weld fittings in 304 and 316L stainless in a variety of sizes.
Dimension of Sanitary Weld Tee fittings-3A,DIN,ISO/IDF,SMS/DS TEE
Dimension of Sanitary Weld Tee fittings-DIN PULLED TEE-REDUCING TEE
